SLLUB Backlight | 400x200mm | 15.75x7.87"

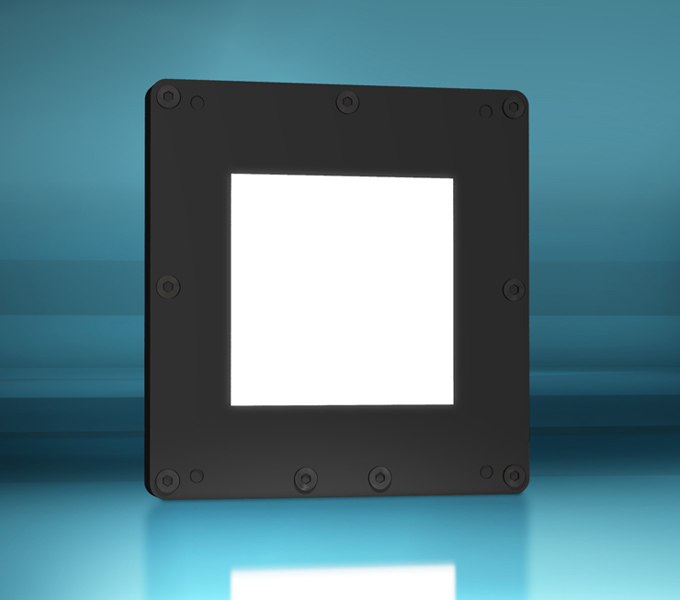

SLLUB Backlight | 50x50mm | 1.97x1.97"

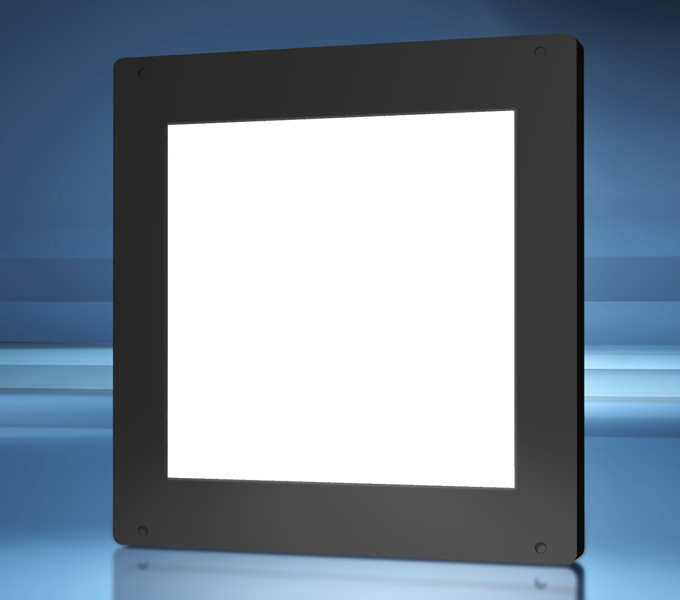

SLLUB Backlight | 100x100mm | 3.94x3.94"
SLLUB Backlights by PHLOX® offer the best life cycle, the best chromaticity stability and the best luminance on the market, all in an ultra compact and IP-65 body. PHLOX® is the only manufacturer to provide uniformity and luminance datas on the quality control seal positioned at the back of every backlight.
- Available in Standard sizes (mm): 50x50 | 100x100 | 200x200 | 160x120 | 150x40 |
- Available in Standard sizes (inches): 1.97x1.97 | 3.94x3.94 | 7.87x7.87 | 6.29x4.72 | 5.91x1.57 |
- Custom sizes: All sizes possible up to: 500mm/19.685"
Super Long Lasting Ultra Bright
Highest luminance (1)
From 30.000 cd/m2 to 60.000 cd/m2
Best uniformity (1) ≥95% (±10%) (2) Expected life > 100.000 hours Ultra slim housing 8.5mm/0.334" (2)
(2) on standard sizes
to 48H quote and delivery
Each PHLOX® Backlight is provided with:
- Certificate of uniformity and luminance
- Seal of quality on the back
- 24 months warranty
WORLDWIDE PATENTS ISSUED
