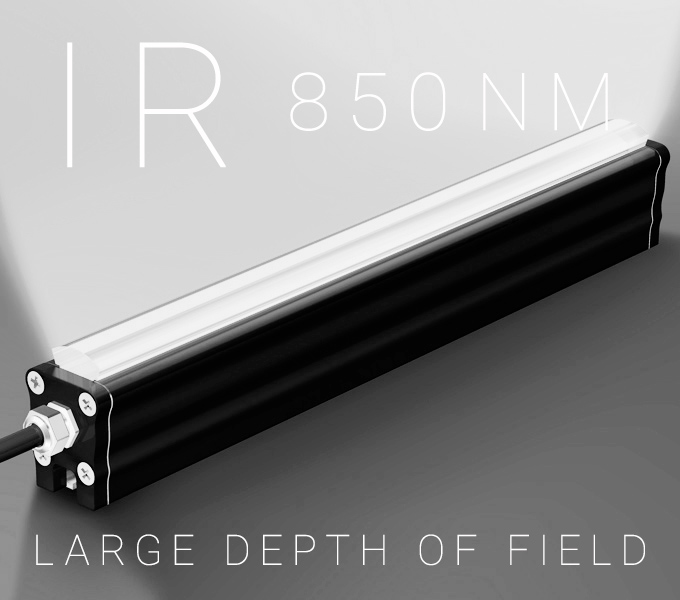

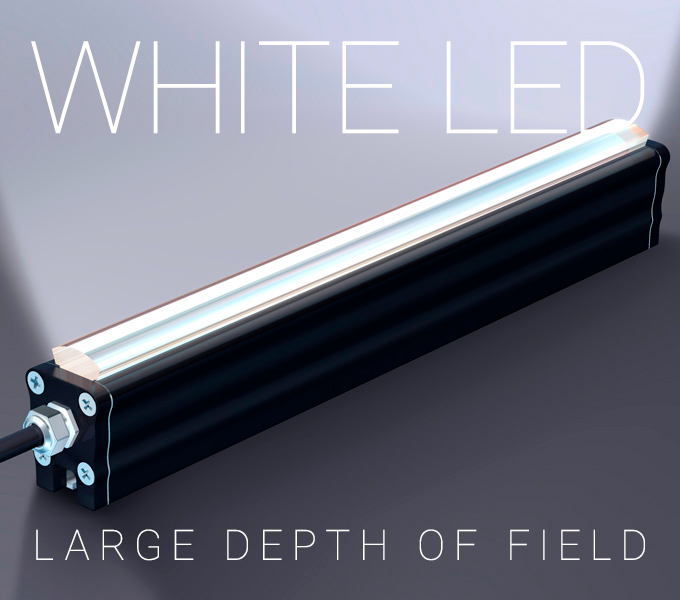

PHLOX® OPTIC LINEAR LIGHT
Constant current & large depth of field linear lighting for large surface inspection
Optic Linear lights by PHLOX® offer the best life cycle,
the best chromaticity stability and the best luminance
on the market, all in an ultra compact aluminium body.
- Available in 18 standard sizes (useful mm): from 64 to 526mm x 31 x 24.5mm
X = 64 | 91 | 118 | 145 | 172 | 199 | 227 | 254 | 281 | 308 | 335 | 362 | 389 | 416 | 443 | 470 | 497 | 526 - Available in 19 standard sizes (useful inches): from 2.56 to 21.8 x 1.22 x 0.96"
X =2.51 | 3.58 | 4.65 | 5.70 | 6.77 | 7.83 | 8.93 | 10.00 | 11.06 | 12.12 | 13.19 | 14.25 | 15.32 | 16,38 | 17.44 | 18.50 | 19.56 | 20.71
Phlox® Optic Linear light
-
Luminance ≥1 000.000 cd/m2 (1)
-
Uniformity ≥90% (±10%) (1)
-
Colour Temp. 5.700°K (± 500)
-
IR Wavelenght: 850 nm
-
All sizes possible up to 1 linear meter / 3.28 linear feet
-
Standard colours:
White + IR

-
Custom colours available:
Red + Green + Blue + UV + RGB

-
IP40 (IP65 on request)
-
Expected life > 100.000 hours
48
48H quote and delivery

Each PHLOX® Optic Linear light is provided with:
- 24 months warranty
WORLDWIDE PATENTS ISSUED
